The Figure 514 Pressure Reducing Valve is a direct-acting, spring-regulated valve featuring a single-seat design and piston-operated control mechanism.
Its balanced valve disc assembly ensures that fluctuations in upstream pressure do not affect the preset downstream pressure, providing stable and reliable performance.
The valve operates by sensing downstream pressure through the piston, which automatically adjusts the valve position to regulate flow and maintain the desired outlet pressure.
Designed for dependable shut-off and precise pressure control, the valve is suitable for a wide range of applications involving water, air, gases, oils, and chemical fluids.
The Figure 514 Pressure Reducing Valve is certified to AS/NZS 4020 standards, ensuring compliance for use in drinking water applications.

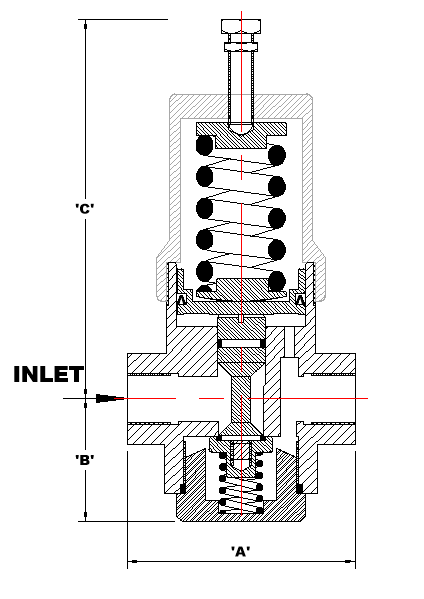

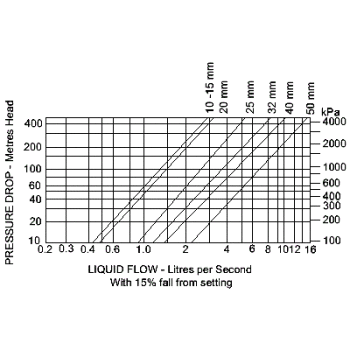

Valve Size | A scd. | A flgd. | B | C | ~kg |
10mm | 93 | – | 48 | 140 | 2 |
15mm | 93 | 135 | 48 | 140 | 2 |
20mm | 93 | 152 | 48 | 140 | 2 |
25mm | 114 | 152 | 61 | 188 | 6 |
32mm | 165 | 214 | 61 | 235 | 7 |
40mm | 175 | 214 | 88 | 325 | 10 |
50mm | 175 | 214 | 88 | 325 | 10 |
| Connections | BSP/NPT, Flanged |
|---|---|
| Working Pressure | 4000 kPa Maximum |
| Adjustable Ranges | 70-300, 200-700, 500-1600kPa, and higher |
| Temp. Range | Nitrile seals: 2oC – 80oC Viton seals: Above 80oC |
Body: 316 Stainless Steel
Trim: 316 Stainless Steel
Seals: Nitrile, EPDM or Viton
